WiFi модуль для ноутбука BL-M8812EU2 OpenIPC
Категорія: Запчастини для ноутбуків
Підкатегорія: Wi-Fi модулі
Ціна
790 грн.
Стан
Б/В
Опис
Features:
Operating Frequency: 5.15 - 5.85GHz
IEEE Standards: IEEE 802.11a/n/ac
Support 2T2R mode with 10/20/40/80MHz bandwidth
WLAN PHY rate can reach up to 867Mbps
Connect to external antennas through IPEX connectors
Host Interface is USB 2.0
Single DC 5V Power Supply
General Specifications:

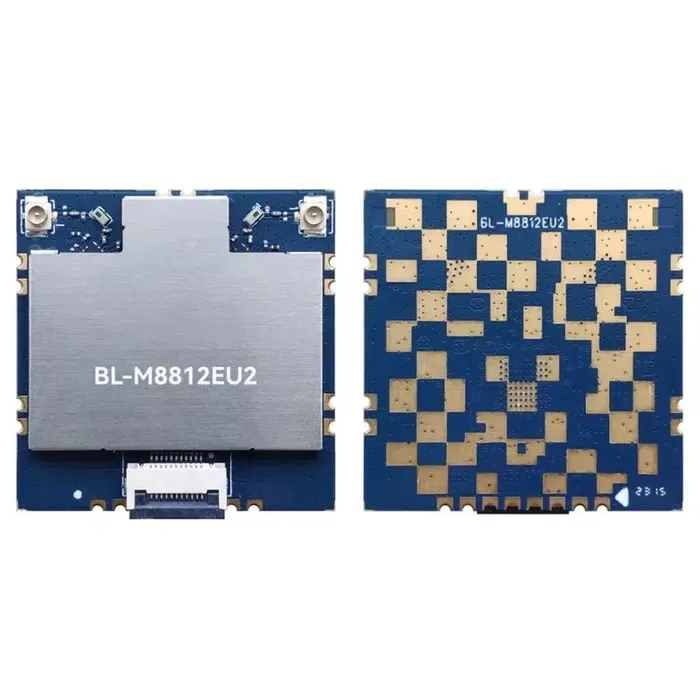

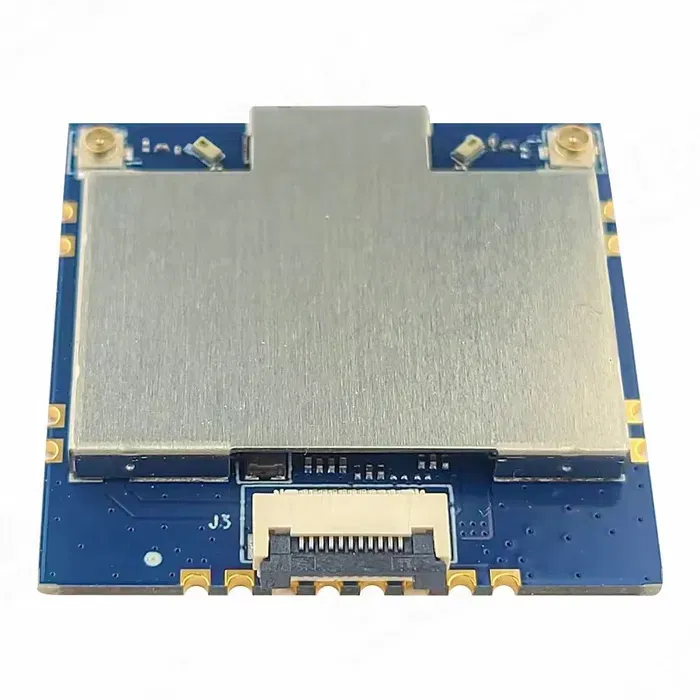

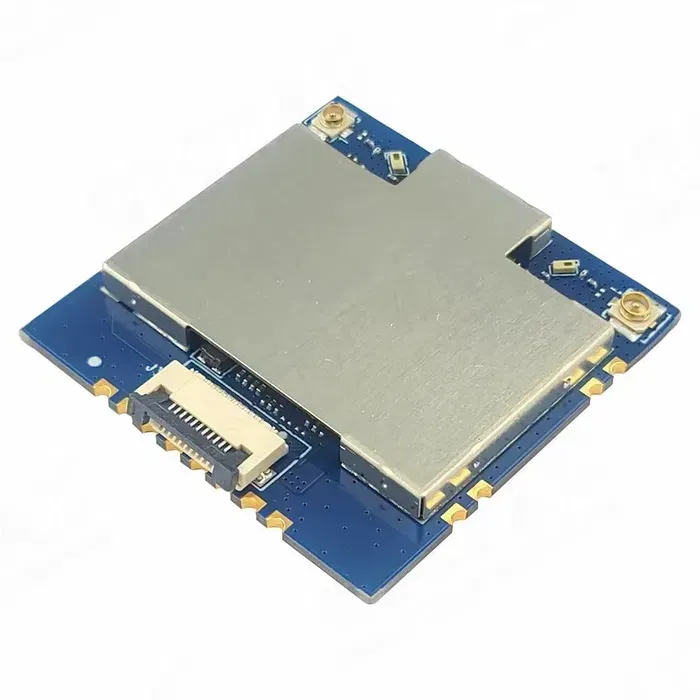

Module Name: BL-M8812EU2
Chipset: Realtek RTL8812EU-CG
WLAN Standards: IEEE 802.11 a/n/ac
Host Interface: USB 2.0
Antenna: Connect to the external antenna through IPEX connectors
Dimension: 32.0*32.0*3.5mm (L*W*H)
Power Supply: DC 5.0V±0.25V 1800mA (Max)
Operation Temperature: -20с to +70с
Operation Humidity: 10% to 95% RH (Non-Condensing)
